KBSGZY 50-4000KVA EXP Explosion-proof mobile substation for mine tunnel Dry-type explosion-proof transformer
Product description:
Model Description And technical parameter:
Product details and system structure:
The dry-type transformer is with 2 kinds of basic structure. One is the box-typed explosion-proof structure with the upper cover open, which is applicable for the products at 800kVA and over. It's made up of the body, the corrugated box, the upper cover, the tipping transformation flange box, the connection transformation flange box, the high & low voltage side junction box and the flange roller wheel. The other is the box-typed explosion-proof structure with the two ports open, which is applicable for the products at 630kVA and lower. It's made up of the body, the corrugated box, the high and low voltage side port cover and junction box, the tipping transformation flange box, the connection transformation flange box, the mobile trailer and the flange roller wheel. The product is with the excellent performance on explosion-proof and enough mechanical strength. The outer covering would not damage or deform under the hydraulic pressure at 1MPa.
There's the electrical interlock on the high & low voltage side junction box, which could trip the high voltage power distribution unit when opening the junction box if the power supply is not shut off. It must have the warning of "It's strictly forbidden to open the cover with power supply." on the cover without the electrical interlock, so as to warn the operator to cut off the power supply before opening the cover.
There are 4 big rings on the upper part of the body for hanging the transformer. For the small rings on the port cover or upper cover, they are used to hanging the port cover or upper cover for assembly, repairing and checking.
Product features and scope of use:
The mineral product separates the explode migration transformer substation separaters the explode migration transformer substation by the mineral product with the do-like transformer, the high-pressured load switch either the high pressure and the low pressure switch ot he low pressure guarantees is composed
This series dry type mining explosion isolation movable transformer substation is a kind of movable whole set distribution and transformation device.
It has the protection of creepage, earth leakage, overload, short circuit, overvoltage, undervoltage etc
It is suitable for not only mines filled with firedamp mixed gas, grime and explosive gas, but also the gas and steam environment that can not erode metal and insulation.
Product working environment:
1. The installation height shall not exceed 1 000 m above sea level, otherwise specified in special environment
2. Ambient temperature:
The highest temperature is + 40 ºC
The average temperature of the hottest month is + 30 ºC
The highest annual average temperature is + 20 ºC
The minimum temperature is - 5 ºC
3. The relative humidity of the surrounding air should not exceed 95% (+ 25 ºC)
4. In the mine with methane gas mixture and coal dust and explosion risk
5. In the environment without strong turbulence, vibration and inclination of vertical plane not more than 150
6. No gas and steam sufficient to corrode metal and damage insulation
7. No dripping place
8. The waveform of power supply voltage is similar to sine wave
9. The three-phase power supply voltage is approximately symmetrical.

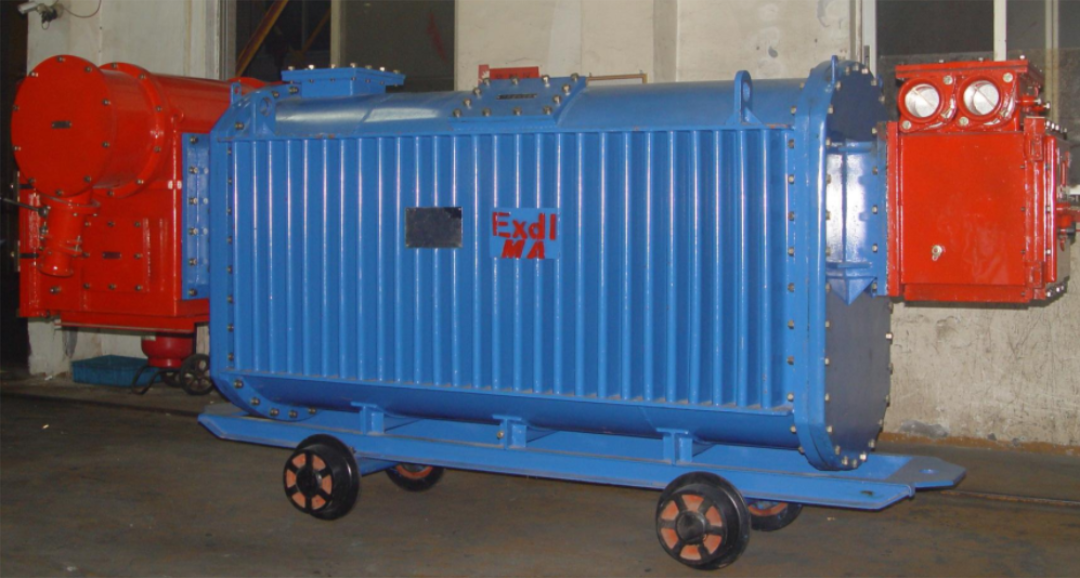

Products real shot:

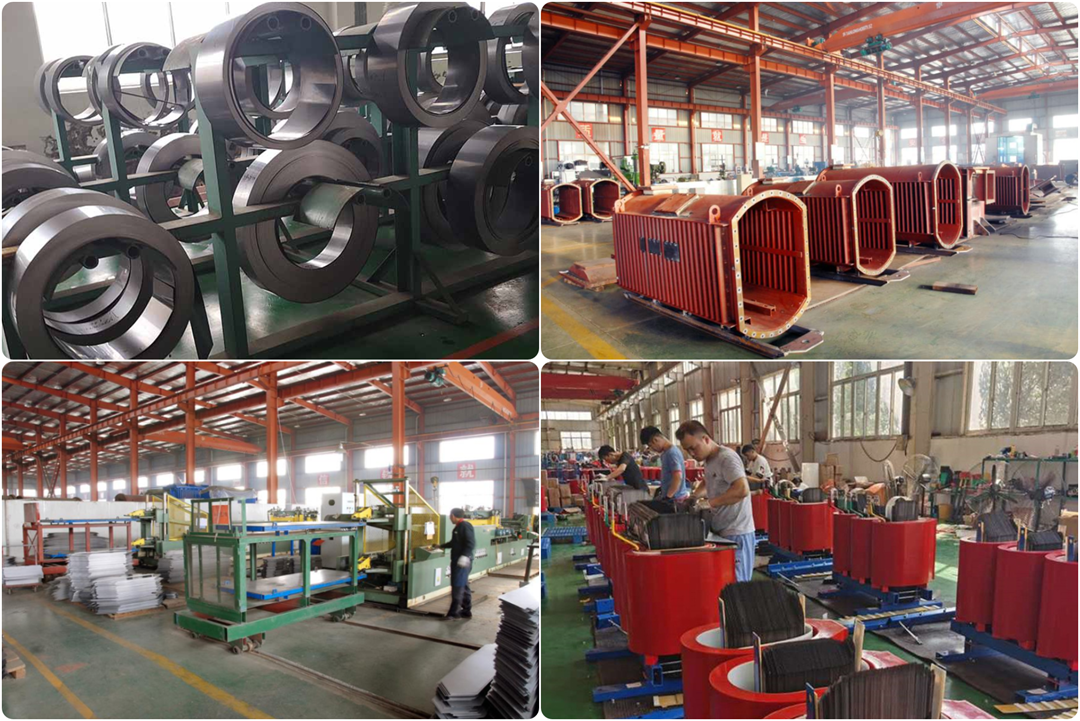

A corner of the production workshop:
